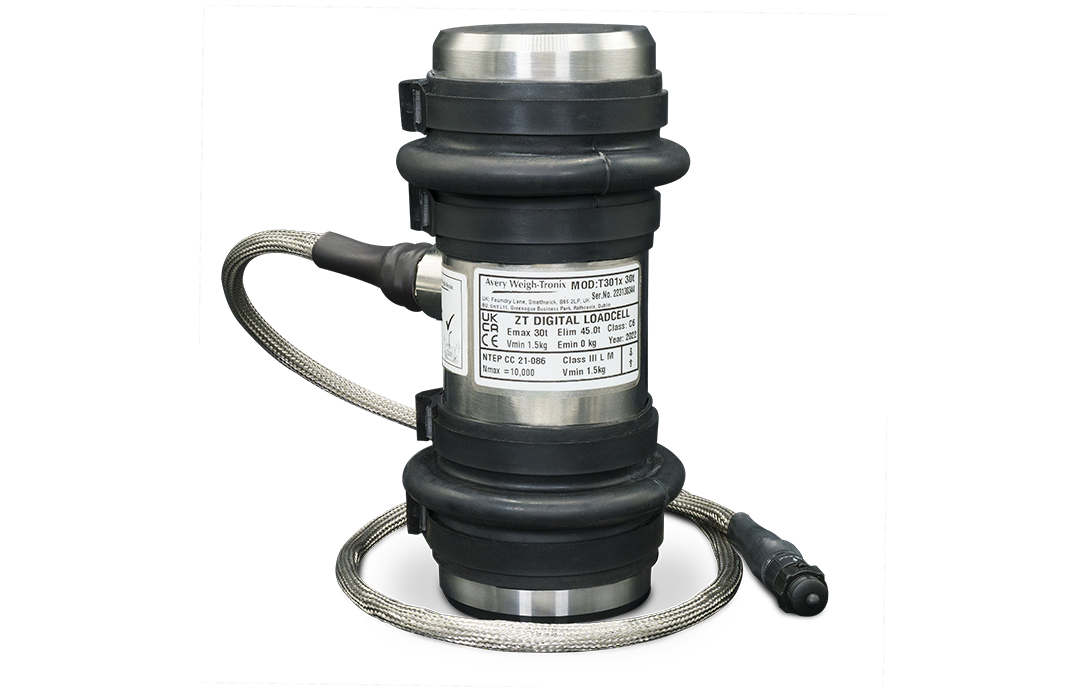

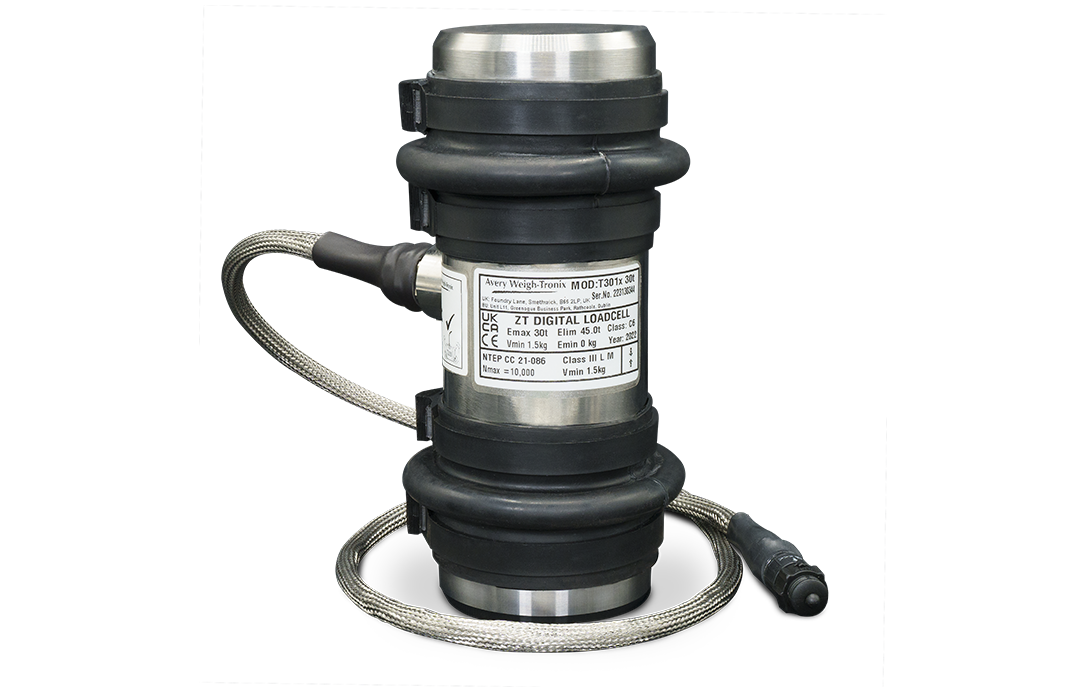

ZT Digital Load Cell

The Right Choice for your Truck, Multi-Scale and Hopper Weighing.

You are here: Home » Products » ZT Digital Load Cell

Overview

The Right Choice for your Truck, Multi-Scale and Hopper Weighing.

With a proven track record of manufacturing canister load cells to the highest industry and quality standards, Avery Weigh-Tronix’s latest ZT Digital Load Cell uses the latest state-of-the-art load cell manufacturing and testing equipment. Avery Weigh-Tronix load cells are designed to stand the test of time, even in the harshest of environments. Compatible with our ZM605ZM615 indicators using Amphenol LTW® connectors, making diagnostics a breeze. Our patented Conversion Casting allows the ZT Digital Load Cell to be used in standard BridgeMont Truck Scales making retrofit of existing installs possible.

Features

  • 66,000 lb Capacity
  • Fully submersible, hermetically sealed to IP68
  • Integral Lightning Protection (Class 4, certified)
  • Stainless Steel Construction
  • NTEP and C6 OIML Trade Approved
  • Smart and Secure Digital Protocol
  • No junction box needed

The ZT Digital Load Cell is connected by a network of interlocking cables without the use of a junction box or hand wiring.

Real time diagnostics monitors the system and will notify the user of any errors to resolve issues quickly.

Each ZT Digital Load Cell is supplied as standard pre-calibrated, linearized, temperature compensated and with factory assembled pre-greased load buttons.

The ZT load buttons and load bearing element have been designed with a dual pin system to eliminate cell rotation.

ZT Digital Secure protocol means the signals from each ZT Digital Load Cell cannot be tampered with unlike analog cells.

Our patented Conversion Casting allows the ZT Digital Load Cell to be used in standard BridgeMont Truck Scales making retrofit of existing installs possible.

Each ZT Digital Load Cell has 6,000,000 internal divisions at rated capacity.

WEBZTLC30000

  • Length 3.81in
  • Height 7.87in
  • Weighing Increments 6.6lb
  • Maximum Capacity 66000lb
  • Load Cell Type Digital Compression
  • Material 304 Stainless Steel
  • Weighing Increments 3kg
  • Maximum Capacity 30000kg

Related resources

ZT Digital Load Cell Frequently Asked Questions – EN Download
ZT Digital Load Cell Product Brochure – EN Download
ZT Digital Load Technical Specification – EN Download
