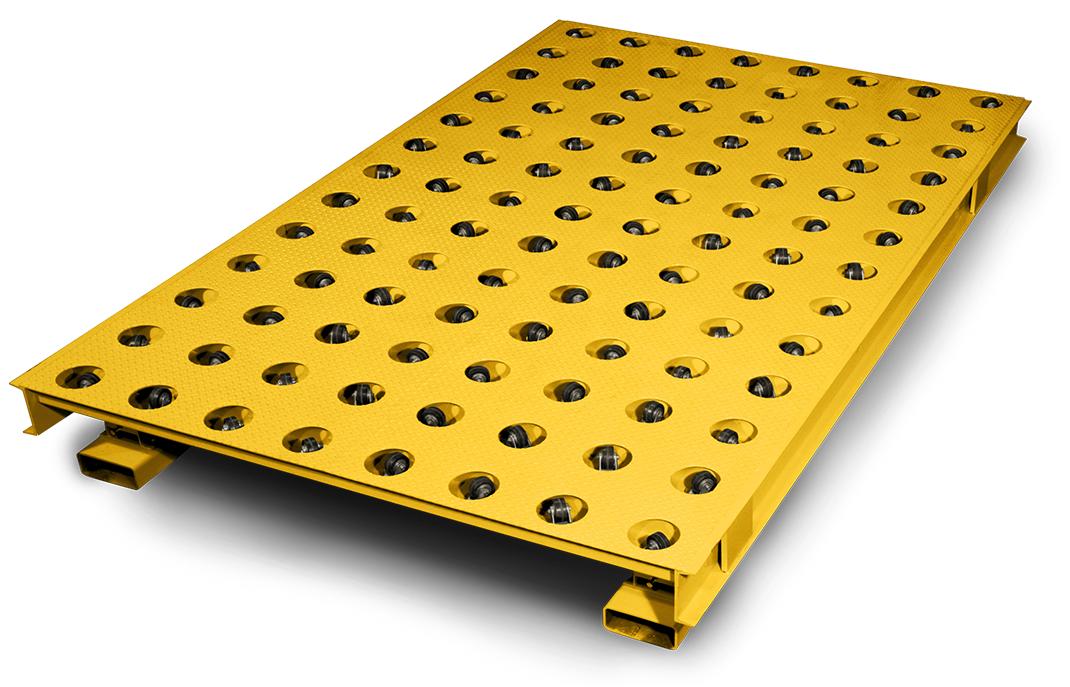

The swivel caster scale is a heavy-duty scale. It is specifically designed to make the weighing of large cargo containers fast and accurate. The scale is made up of 104 heavy duty 360-degree swivel casters, which allows loading and unloading in any direction, with steel tip-up stops in key locations.
Heavy Duty Swivel Caster Scale
The swivel caster scale is a heavy-duty scale specifically designed to make the weighing of large cargo containers fast and accurate.
Overview
The swivel caster scale is a heavy-duty scale specifically designed to make the weighing of large cargo containers fast and accurate.
Avery Weigh-Tronix’s Heavy Duty Swivel Caster Scale were originally developed for the air freight industry, to weigh air cargo containers. Since then, due to their accuracy and durability, our cargo scales have been used in many other industrial applications.
Constructed from welded steel channels with a heavy duty tread plate deck on a steel under-structure, this rugged scale has a capacity of 20,000 lbs.
The Swivel Caster cargo scale features the highly accurate and reliable Weigh Bar weight sensor. It includes heavy duty stops to protect against overloading or dropped containers.
AWT05-100723
-
Length 131in
-
Height 21in
-
Weighing Increments 4lb
-
Maximum Capacity 20000lb
-
Power Source —
-
Legal for Trade Capable No
-
Material 1/4" Steel Deck
-
Weighing Increments 2kg
-
Maximum Capacity 10000kg
AWT05-500895
-
Length 131in
-
Height 20in
-
Weighing Increments 4lb
-
Maximum Capacity 20000lb
-
Power Source —
-
Legal for Trade Capable No
-
Material 1/4" Steel Deck
-
Weighing Increments 2kg
-
Maximum Capacity 10000kg
-
-
—
