BSS Batching Weigh Bars

Batching Weigh Bars convert your bin, tank or hopper into accurate, dependable scales.

You are here: Home » Products » BSS Batching Weigh Bars

Overview

Batching Weigh Bars from Avery Weigh-Tronix convert your bin, tank or hopper into accurate, dependable scales with minimal interruption.

Full washdown Batching Weigh Bar, ideal for food and chemical weighing applications

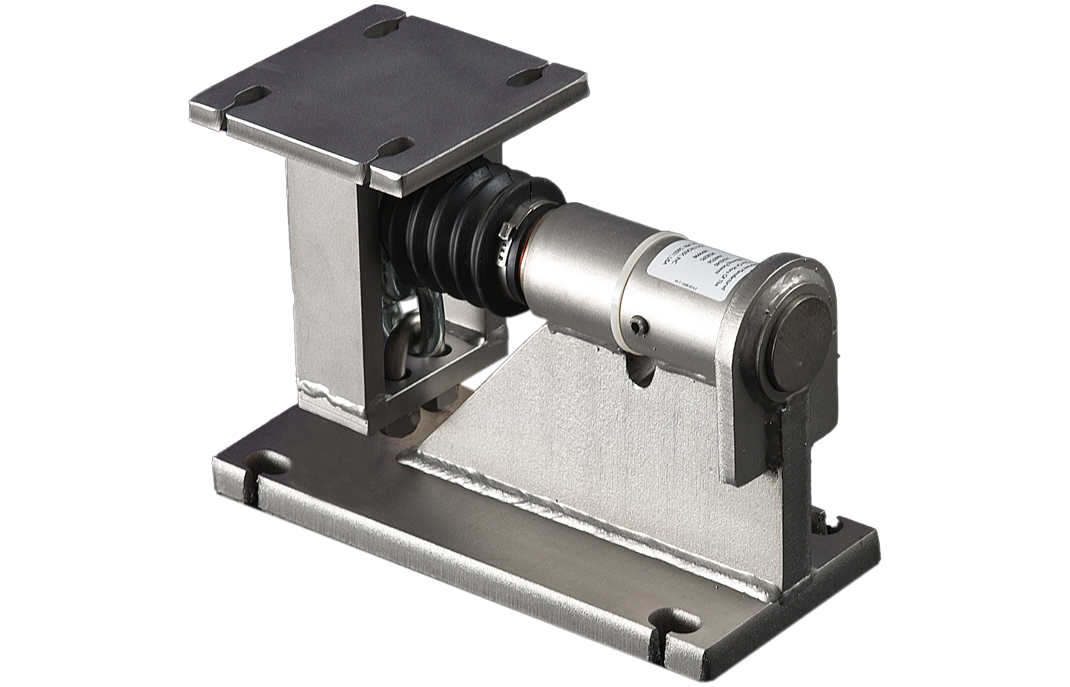

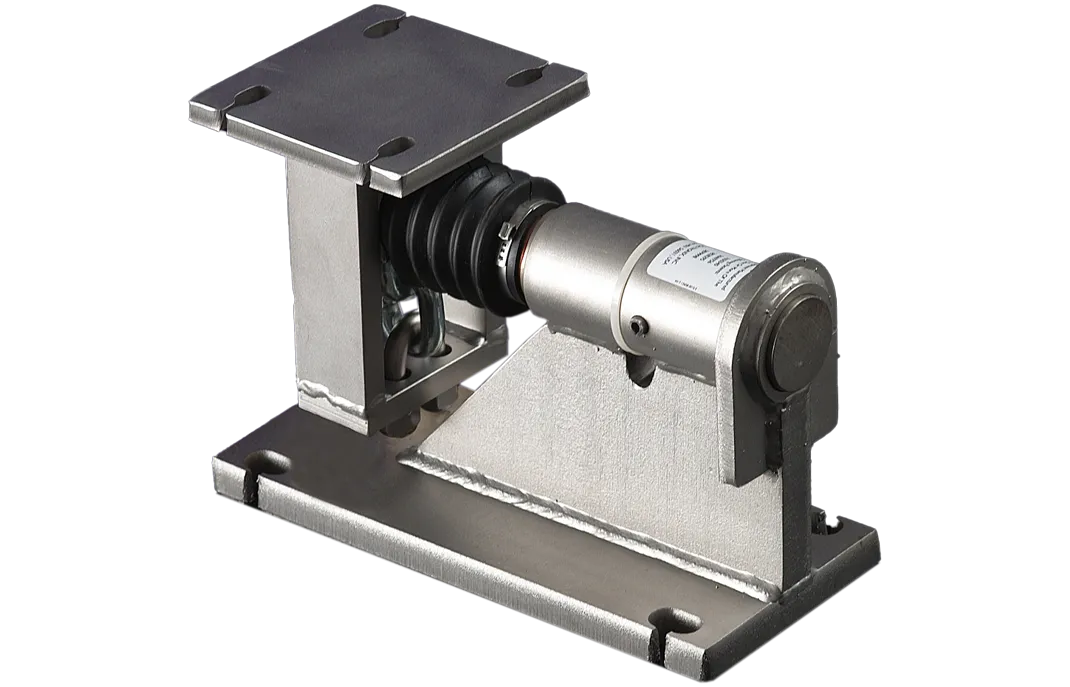

The BSS Batching Weigh Bar is a 350-ohm, full bridge, single-ended, cantilever type stainless steel Weigh Bar.  Each Weigh Bar is mounted in a wash-through, compression, stainless steel stand.

The BSS features a self-leveling chain link design, making it ideal for hoppers and silos, where vibration and off-center loading can be a problem.

The chain link assemblies are also fully washdown protected, for food and chemical applications.

Legal for trade

  • The BSS Batching Weigh Bar is trade approved, for applications where product is sold by weight, and is accurate to 5,000 divisions.
  • The BSS is sold as part of a kit which is available in capacities from 1500 lbs to 80,000 lbs.
  • The BSS is a 350-ohm, full bridge, single-ended, cantilever type stainless steel Weigh Bar.

27964-0031MTS

  • Length 11.5in
  • Height 5.38in
  • Weighing Increments 0.1lb
  • Maximum Capacity 500lb
  • Load Cell Type Bending Weigh Bar
  • Material Stainless Steel
  • Weighing Increments 0.04kg
  • Maximum Capacity 200kg

27964-0049MTS

  • Length 13.88in
  • Height 7.06in
  • Weighing Increments 0.25lb
  • Maximum Capacity 1250lb
  • Load Cell Type Bending Weigh Bar
  • Material Stainless Steel
  • Weighing Increments 0.1kg
  • Maximum Capacity 500kg

27964-0056MTS

  • Length 14.12in
  • Height 7.44in
  • Weighing Increments 0.5lb
  • Maximum Capacity 2500lb
  • Load Cell Type Bending Weigh Bar
  • Material Stainless Steel
  • Weighing Increments 0.2kg
  • Maximum Capacity 1000kg

27964-0064MTS

  • Length 13.81in
  • Height 9in
  • Weighing Increments 1lb
  • Maximum Capacity 5000lb
  • Load Cell Type Bending Weigh Bar
  • Material Stainless Steel
  • Weighing Increments 0.4kg
  • Maximum Capacity 2000kg

27964-0072MTS

  • Length 16.88in
  • Height 12.5in
  • Weighing Increments 2lb
  • Maximum Capacity 10000lb
  • Load Cell Type Bending Weigh Bar
  • Material Stainless Steel
  • Weighing Increments 0.9kg
  • Maximum Capacity 4500kg

27964-0080MTS

  • Length 19.62in
  • Height 16in
  • Weighing Increments 4lb
  • Maximum Capacity 20000lb
  • Load Cell Type Bending Weigh Bar
  • Material Stainless Steel
  • Weighing Increments 1.8kg
  • Maximum Capacity 9000kg

  • Length —
  • Height —
  • Weighing Increments —
  • Maximum Capacity —
  • Load Cell Type Digital Compression
  • Material Stainless Steel
  • Weighing Increments 0.5kg
  • Maximum Capacity 100kg

Related resources

WeighBar Product Brochure – EN Download
